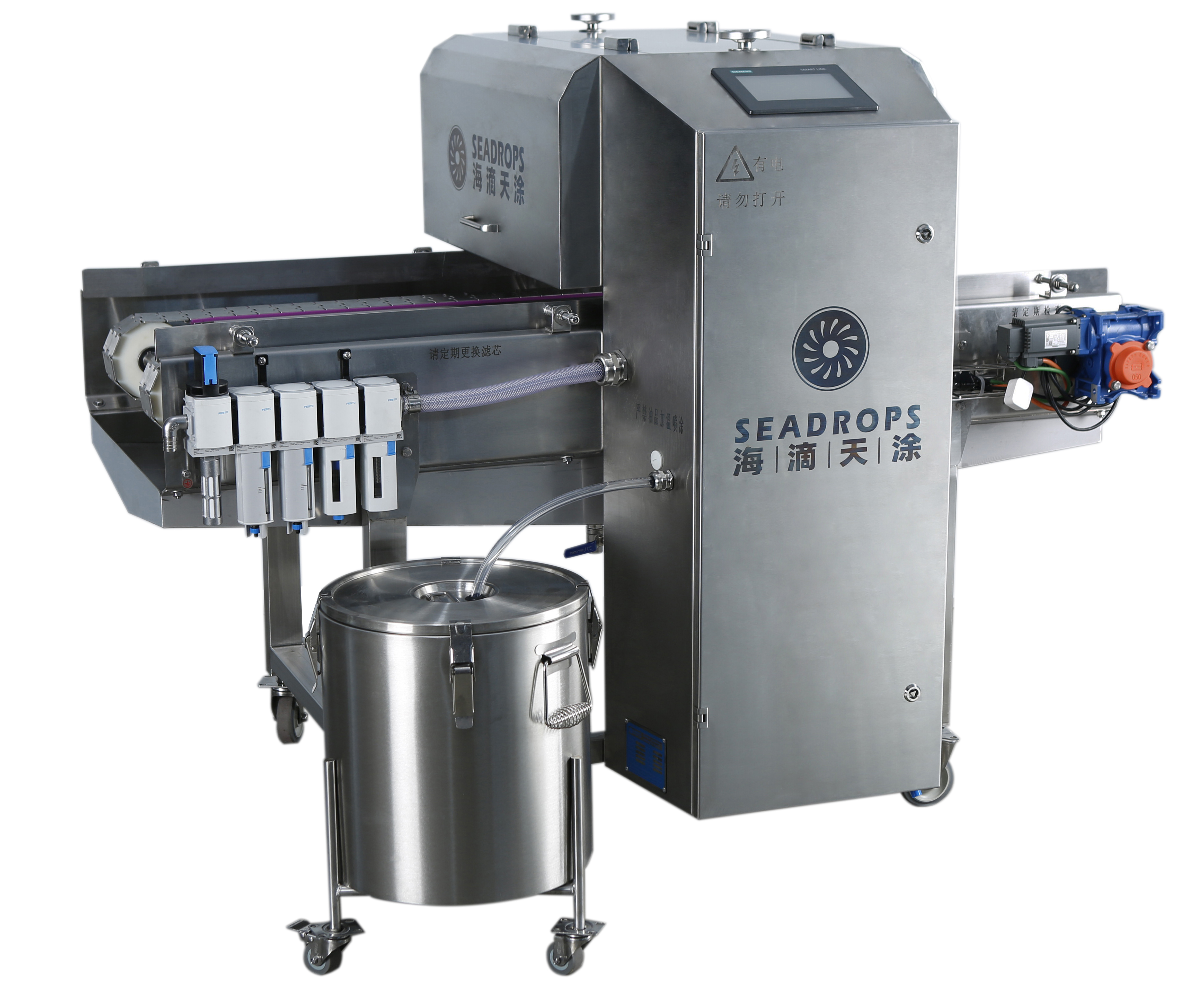

| TECHNICAL SPECIFICATIONS |
PARAMETER |
| Power Supply Voltage |
AC 220V |
| Air Source Pressure |
≥бbar |
| Conveying Length |
1600mm(customizable) |
| Conveying Width |
720mm(customizable) |
| Atomization Pressure |
Manually control 0-6bar |
| Opening Pressure |
Manually control 0-6bar |
| Conveying System |
0.4KW |
▲Application: Applicable to toast pans, circular pans, rectangular pans, flat pans, and other various molds, etc.
▲Installation: The factory provides an independent air source connector with a G4 screw; inner diameter of air hose≥19mm; stable air pressure, 6kg; power supply, 220V & 380V.
▲Accuracy: Adopt a SIEMENS dual system servo conveyor; enable spraying position to be precisely accurate;
waste control, able to avoid releasing oil spraying on the surface of the mold; the system supports saving 4 to 8 groups of mold parameters for thorough automatic operation. Just one click, then switch to spraying mode.
▲Filter & Pressure Regulator: Equipped with a German FESTO air filter and pressure-reducing valve, which could control the atomization and opening pressure automatically to ensure the spraying effect. Regarding the mold with size 800*800, the spraying speed could reach 3 to 4 seconds per pan, improving the production efficiency.
▲Specialized Sprayer Gun: Use the Haidi Tiantu SEADROPS specialized stainless sprayer gun, which adopts multi-stage airflow with ultra-high atomization ability. The atomization diameter ranges between 3cm and 12cm, ensuring a demolding effect. It is suitable for spraying high-viscosity release oil, able to save 15% of oil, improve the utilization rate, and accurately control cost.
▲Spray gun design: Adopting a single or double-row spray gun design completely solves the problem of instability caused by manually adjusting the spray gun position, which improves production efficiency and stability.
Optional Features:
Option One, Micro Oil Mist Collector: This ensures a pollution-free workshop environment.
Option Two, Production Management Software: This could automatically calculate the daily usage quantity of the released oil, easy for precise analysis, so as to save control.
Option Three, Hardware of oil relevant: A, Imported Diaphragm Valve Oil Supply, easy to operate. B, Stainless Steel Grease Oil Supply, which provides an ultra-long service life with high stability and low maintenance requirements.
▲Applicable to: Choose appropriate release agents according to the texture of the dough to reach the best performance.
